Charlotte Tub Filler Trim T70385-PC

Name: Charlotte Tub Filler Trim T70385-PC
Brand: Brizo

Обновлено в 2017 году

Описание

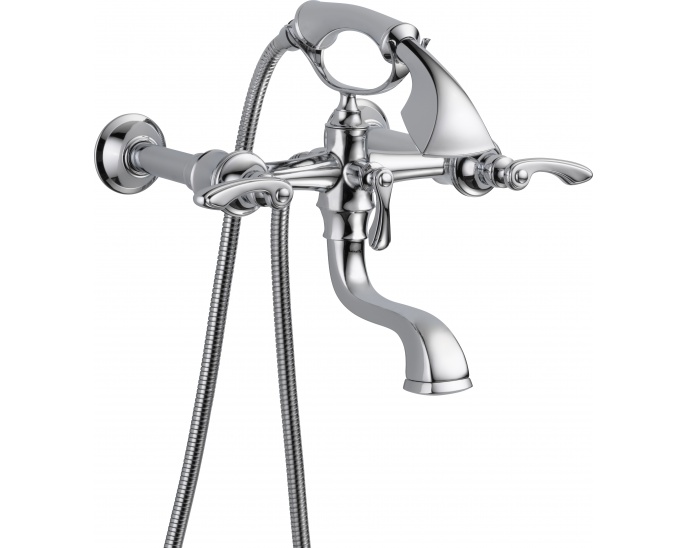

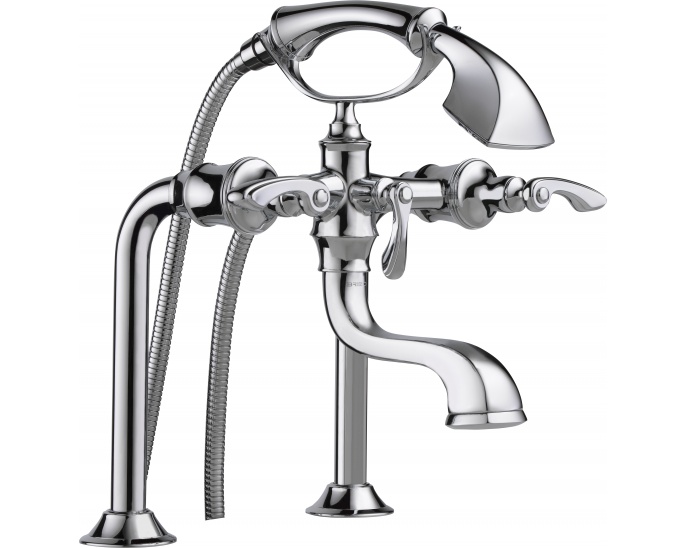

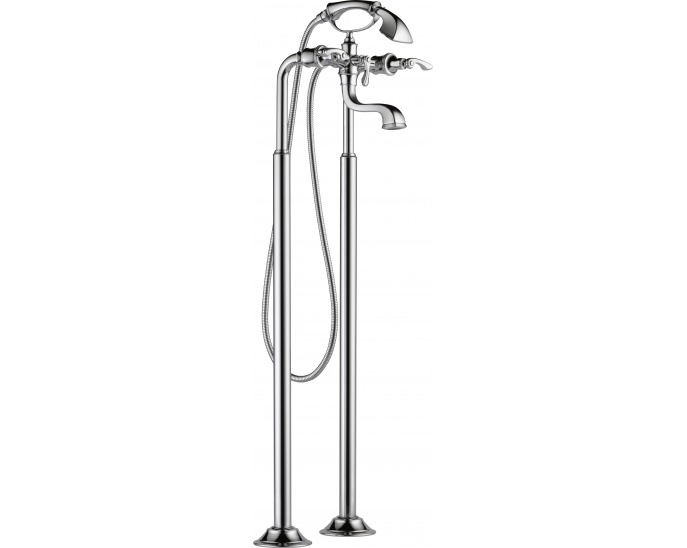

CHARLOTTE TWO-HANDLE FREESTANDING TUB FILLER TRIM Model Number: T70385-PC. Chrome finish. Deck mounted 2-hole installation; 8® center-to-center; solid brass construction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation. Floor mounted 2-hole installation; 8® center-to-center; solid brassconstruction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation. Wall mounted 2-hole installation; 8® center-to-center; solid brass construction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation.

Файлы для скачивания


dwg	charlotte_wall_mt-two-handle_freestanding_tub_filler_trim_t70385-pc1dwg.dwg	914 KB	AutoCAD 2013
dwg	charlotte_floor_mt-two-handle_freestanding_tub_filler_trim_t70385-pc1dwg.dwg	1.1 MB	AutoCAD 2013
dwg	charlotte_deck_mt-two-handle_freestanding_tub_filler_trim_t70385-pc1dwg.dwg	1.5 MB	AutoCAD 2013
dxf	charlotte_wall_mt-two-handle_freestanding_tub_filler_trim_t70385-pc1dxf.dxf	7.1 MB	—
dxf	charlotte_floor_mt-two-handle_freestanding_tub_filler_trim_t70385-pc1dxf.dxf	8.9 MB	—

Технические характеристики

Общее
Категория	Оборудование для систем водоснабжения и водоотведения
Тип	Трубопроводная арматура
Материалы	Хром
Размеры
Высота	1000 mm
Ширина	500 mm
Длина	500 mm
Вес	1000 g
