Charlotte Tub Filler Trim T70385-PNCO

Name: Charlotte Tub Filler Trim T70385-PNCO
Brand: Brizo

Обновлено в 2016 году

Описание

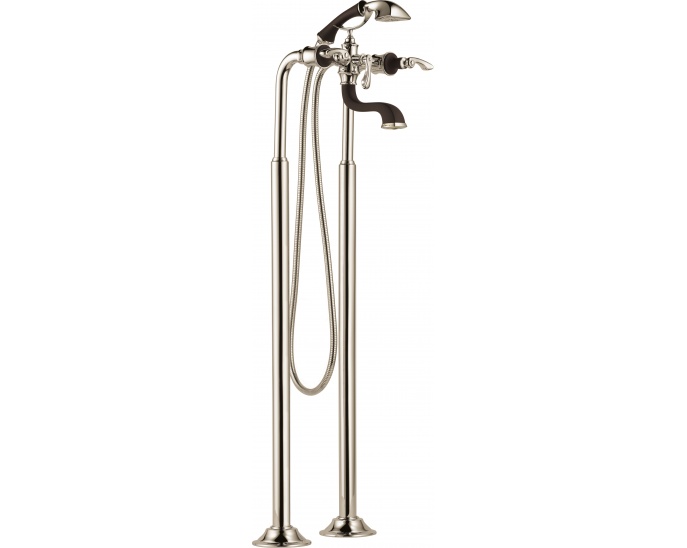

CHARLOTTE TWO-HANDLE FREESTANDING TUB FILLER TRIM Model Number: T70385-PNCO. Cocoa Bronze and Polished Nickel finish. Charlotte™ infuses clean lines with classical elegance, deftly bridging the gap between traditional and modern design. Deck mounted 2-hole installation; 8® center-to-center; solid brass construction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation. Floor mounted 2-hole installation; 8® center-to-center; solid brass construction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation. Wall mounted 2-hole installation; 8® center-to-center; solid brass construction.High flow ceramic control valves flows up to 12.0 gpm @ 60 psi with rough R70200; 10 gpm with rough R70200-WS.Holes For Installation: 2-hole 8″ installation.

Файлы для скачивания


dwg	charlotte-wall-mt-two-handle-freestanding-tub-filler-trim-t70385-pncodwg.dwg	904 KB	AutoCAD 2013
dwg	charlotte-floor-mt-two-handle-freestanding-tub-filler-trim-t70385-pncodwg.dwg	1.1 MB	AutoCAD 2013
dwg	charlotte-deck-mt-two-handle-freestanding-tub-filler-trim-t70385-pncodwg.dwg	1.5 MB	AutoCAD 2013
dxf	charlotte-wall-mt-two-handle-freestanding-tub-filler-trim-t70385-pncodxf.dxf	7.1 MB	—
dxf	charlotte-floor-mt-two-handle-freestanding-tub-filler-trim-t70385-pncodxf.dxf	8.9 MB	—

Технические характеристики

Общее
Категория	Оборудование для систем водоснабжения и водоотведения
Тип	Трубопроводная арматура
Материалы	Полированное покрытие
Размеры
Высота	1500 mm
Ширина	50 mm
Длина	100 mm
Вес	1000 g
