TorkStar Lifting System

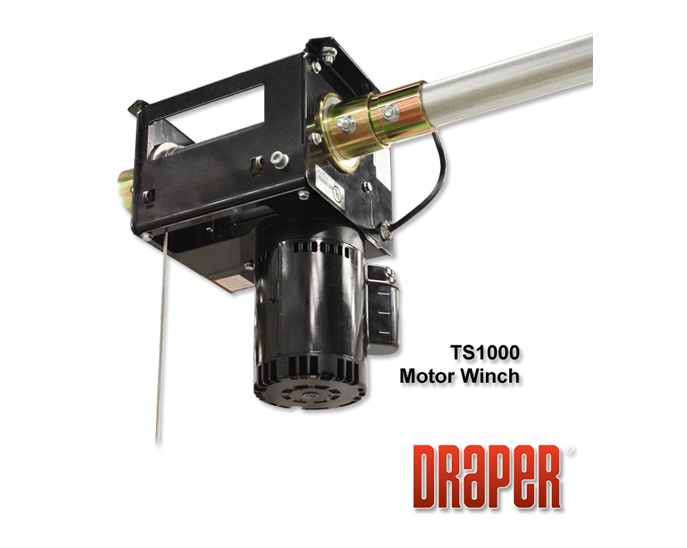

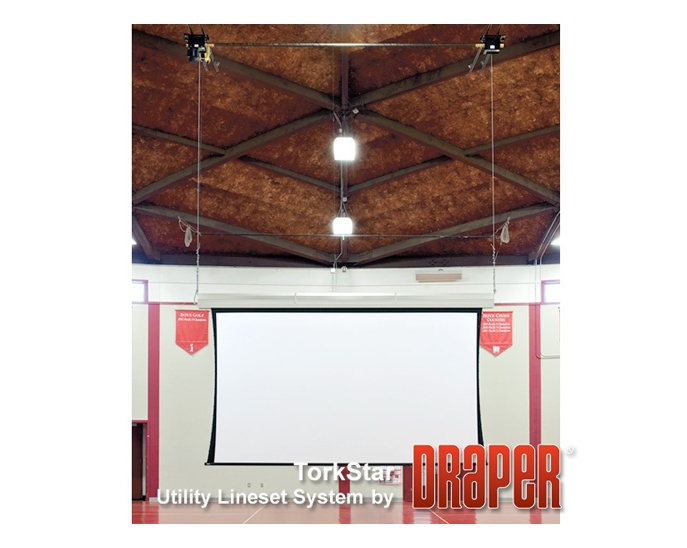

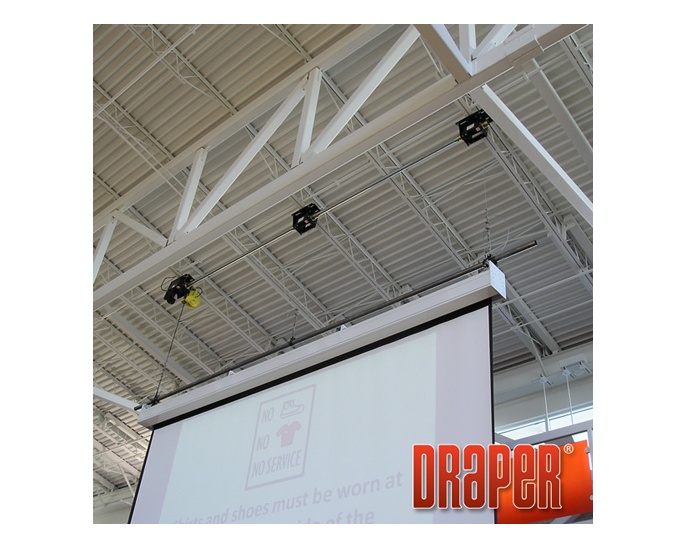

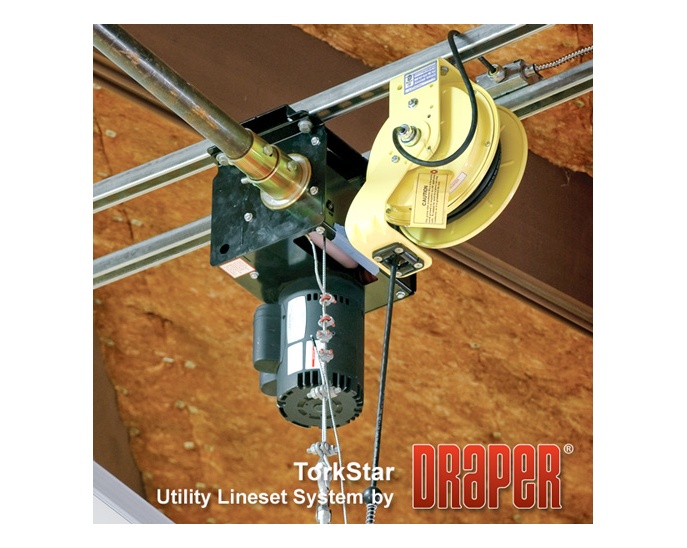

TorkStar is an inherently safe, simple lifting system designed to raise and lower a wide range of products commonly used on stages, in gymnasiums and churches and other public venues. It consists of a motor winch and one or more PosiSpools™, connected by a drive shaft and mounted to the ceiling structure. TorkStar utilizes aircraft cable lift lines with a lifting capacity of 500 pounds (227kg) each. TorkStar eliminates the need for stepladders, scaffolding, or lifts to service or change lamps, filters, or other ceiling suspended items. Use TorkStar to Lift: Projection Screens, Lighting, Speakers, Backdrops, Scenery, Draperies, Curtains, Scrims, Signs, Banners, Flags, Chandeliers, etc. • MK500 Beam Mounting Kit: Enables secure attachment of motor winch and PosiSpool to I-beam. One required per winch or spool. • PS500SC Shaft Coupling: Connects Drive Shaft to Motor Winch and PosiSpool. Two required per winch or spool. • Adjustable Batten Clamp: Provides for leveling if attaching lift lines to batten. One required per lift line. • Ceiling Flange: Trims ceiling openings if installing above false ceiling. One required per lift line. • Drive Shaft: 23/8˝ O.D. / 2˝ I.D. Schedule 40 pipe. • Batten: 17/8˝ O.D. / 11/2˝ I.D. Schedule 40 pipe. • Cable Management System: Optional cable management system consisting of an adjustable industrial-grade precision cable reel. UL & CSA Listed. • Control: Single gang double key switch. • Warranted for one year against defects in materials and workmanship.
