NK4-180 Warm
Обновлено в 2016 годуОписание

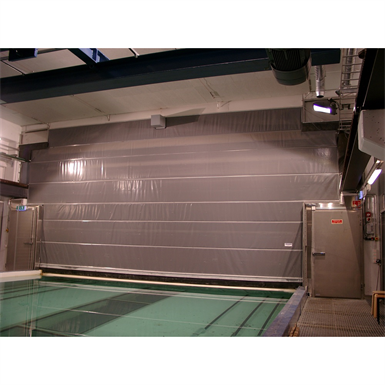

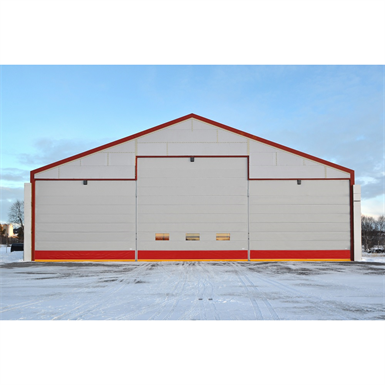

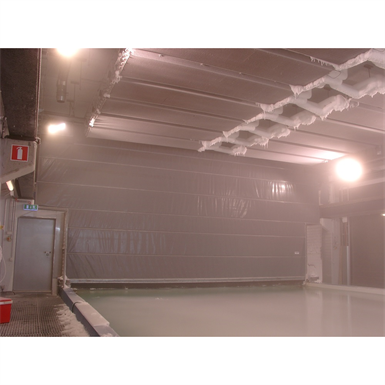

The NK4-180 Warm is a 2-ply fold-up door with two heat insulation layers. Due to its rigid 180 mm wide frame construction, it is particularly suitable as a large exterior door. The width of a single door can be up to 16 m, and the height 20 m. When using an elevating support post system with multiple doors, the door width is unlimited. The heat insulation characteristics of the NK4-180 Warm are excellent, the u-heating value is 0.75 W / (m2 * K). The benefits of the NK4 Warm are showcased best in objects were moisture condensation is heavy. The Warm's door fabric always comes UV-coated, and it is possible to add windows and burglary prevention mechanisms to it, as well.
Файлы для скачивания
| rfa | nk4-180-warmrfa.rfa | 6.1 MB | Revit 2015 |
Типоразмеры (2)
| Наименование | CC | Inside Frame | Outside Frame | Type |
|---|---|---|---|---|
| Installation Within Door Opening Fabric fold-up door NK4-180 Warm | No | Yes | No | 1 |
| Installation Inside or Outside Door Opening Fabric fold-up door NK4-180 Warm | Yes | No | Yes | 0 |
Технические характеристики
| Общее | |
| Категория | Архитектурные объекты |
| Тип | Ворота |
| Материалы | Ткань, Алюминий |
| Сайт производителя | Перейти |
| Размеры | |
| Высота | 2000 mm |
| Ширина | 1600 mm |
| Длина | 180 mm |
| Вес | 1 g |
| Общие характеристики | |
| Article Number | nk4180w |
| BIMobject Category | Doors |
| BIMobject QR code url | http://championdoor.bimobject.com/nk4180w |
| Built-in safety brake | inside the motor |
| Description 1 | Upper housing and lower beam made of galvanized steel, side guide rails and horizontal stiffeners made of anodized aluminium |
